• Deploy a Windows Server 2016 RDS Farm in Microsoft Azure
• Create Microsoft Azure networks, storage and Windows image

• Deploy the Microsoft Azure Virtual Machines
• Configure Domain Controllers
• Deploy the RDS farm
• Configure File Servers for User Profile Disk (UPD)
• RDS final configuration

Github

I have published the complete JSON template on my github. You can copy it and make your modifications as you wish.

JSON template explanation

The JSON template consists of parameters, variables and resources. Parameters and variable are easy to understand. However, it is a little more complicated for resources. The below resource is a Virtual Network. This virtual network takes settings in parameters and variables. The below JSON code create a virtual network with four subnets (Internal, DMZ, Cluster and Gateway).

{
      "apiVersion": "[variables('API-Version')]",
      "location": "[variables('ResourcesLocation')]",
      "name": "[parameters('vNETName')]",
      "properties": {
        "addressSpace": {
          "addressPrefixes": [
            "[parameters('vNETPrefix')]"
          ]
        },
        "subnets": [
          {
            "name": "[parameters('vNETSubIntName')]",
            "properties": {
              "addressPrefix": "[parameters('vNETSubIntPrefix')]"
            }
          },
          {
            "name": "[parameters('vNETSubExtName')]",
            "properties": {
              "addressPrefix": "[parameters('vNETSubExtPrefix')]"
            }
          },
          {
            "name": "[parameters('vNETSubCluName')]",
            "properties": {
              "addressPrefix": "[parameters('vNETSubCluPrefix')]"
            }
          },
          {
            "name": "[Parameters('vNETSubGtwName')]",
            "properties": {
              "addressPrefix": "[Parameters('vNETSubGtwPrefix')]"
            }
          }
        ]
      },
      "tags": {
        "displayName": "Virtual Network"
      },
      "type": "Microsoft.Network/virtualNetworks"
    },

The following block code creates a Public IP address for the Azure Gateway.

{
      "apiVersion": "[variables('API-Version')]",
      "location": "[variables('ResourcesLocation')]",
      "name": "[parameters('S2SPIPName')]",
      "properties": {
        "publicIPAllocationMethod": "Dynamic"
      },
      "tags": {
        "displayName": "Public IP Address"
      },
      "type": "Microsoft.Network/publicIPAddresses"
    }

The following JSON code deploys the local gateway. The S2SGtwOnPremPIP specifies the public IP address of the On-Prem Gateway. The S2SLocalIPSubnet specifies the On-Prem routed IP subnets.

{
      "apiVersion": "[variables('API-version')]",
      "location": "[variables('ResourcesLocation')]",
      "name": "[parameters('S2SGtwOnPremName')]",
      "properties": {
        "localNetworkAddressSpace": {
          "addressPrefixes": [
            "[parameters('S2SLocalIPSubnet')]"
          ]
        },
        "gatewayIpAddress": "[parameters('S2SGtwOnPremPIP')]"
      },
      "tags": {
        "displayName": "Local Gateway"
      },
      "type": "Microsoft.Network/localNetworkGateways"
    }

The following JSON code deploys the Microsoft Azure Gateway by taking the previously created Public IP address. The Microsoft Azure Gateway is located in the gateway subnet.

{
      "apiVersion": "[variables('API-version')]",
      "dependsOn": [
        "[concat('Microsoft.Network/publicIPAddresses/', parameters('S2SPIPName'))]",
        "[concat('Microsoft.Network/virtualNetworks/', parameters('vNETName'))]"
      ],
      "location": "[Variables('Resourceslocation')]",
      "name": "[parameters('S2SGtwAzureName')]",
      "properties": {
        "enableBgp": false,
        "gatewayType": "Vpn",
        "ipConfigurations": [
          {
            "properties": {
              "privateIPAllocationMethod": "Dynamic",
              "publicIPAddress": {
                "id": "[resourceId('Microsoft.Network/publicIPAddresses',parameters('S2SPIPName'))]"
              },
              "subnet": {
                "id": "[variables('vNETSubGtwRef')]"
              }
            },
            "name": "vnetGatewayConfig"
          }
        ],
        "vpnType": "[parameters('S2SGtwVPNType')]"
      },
      "tags": {
        "displayName": "Azure Gateway"
      },
      "type": "Microsoft.Network/virtualNetworkGateways"
    }

To finish, the following block code creates a storage account. This storage account will be used for VM diagnostic logs.

{
      "name": "[parameters('StoAcctLogName')]",
      "type": "Microsoft.Storage/storageAccounts",
      "apiVersion": "2016-05-01",
      "tags": {
        "displayName": "Log Storage Account"
      },
      "sku": {
        "name": "[parameters('StoAcctLogType')]"
      },
      "kind": "Storage",
      "location": "[variables('ResourcesLocation')]"
    }

Import the template

To import the template, connect to Microsoft Azure and search for Template Deployment. Copy past the template. You should have something as below:

Then change the parameters as you wish and click on Purchase (don’t worry, it’s free :p).

Once the template is deployed, you should have 5 resources as below. So the virtual network, the gateways and storage account are created.

You can review the virtual network configuration as the following screenshot:

The public IP is also created:

Create the VPN connection

Now I create the VPN connection between On-Prem and Microsoft Azure. Select the On-Prem gateway and click on Configuration. Please review if the local gateway IP address is correct.

Then select Connections, and create a new connection. Provide a name, select Site-to-Site and specify the virtual network gateway and the local network gateway. To finish, provide a shared key.

Now, you have to configure your local gateway. I have an Ubiquiti gateway and I have set it with the following command lines:

set vpn ipsec auto-firewall-nat-exclude disable
set vpn ipsec disable-uniqreqids
set vpn ipsec esp-group esp-azure compression disable
set vpn ipsec esp-group esp-azure lifetime 3600
set vpn ipsec esp-group esp-azure mode tunnel
set vpn ipsec esp-group esp-azure pfs disable
set vpn ipsec esp-group esp-azure proposal 1 encryption aes256
set vpn ipsec esp-group esp-azure proposal 1 hash sha1
set vpn ipsec ike-group ike-azure ikev2-reauth no
set vpn ipsec ike-group ike-azure key-exchange ikev2
set vpn ipsec ike-group ike-azure lifetime 28800
set vpn ipsec ike-group ike-azure proposal 1 dh-group 2
set vpn ipsec ike-group ike-azure proposal 1 encryption aes256
set vpn ipsec ike-group ike-azure proposal 1 hash sha1
set vpn ipsec ipsec-interfaces interface pppoe0
set vpn ipsec nat-traversal enable
set vpn ipsec site-to-site peer <Azure Gateway Public IP> authentication mode pre-shared-secret
set vpn ipsec site-to-site peer <Azure Gateway Public IP> authentication pre-shared-secret <Shared Key>
set vpn ipsec site-to-site peer <Azure Gateway Public IP> connection-type initiate
set vpn ipsec site-to-site peer <Azure Gateway Public IP> default-esp-group esp-azure
set vpn ipsec site-to-site peer <Azure Gateway Public IP> ike-group ike-azure
set vpn ipsec site-to-site peer <Azure Gateway Public IP> ikev2-reauth inherit
set vpn ipsec site-to-site peer <Azure Gateway Public IP> local-address any
set vpn ipsec site-to-site peer <Azure Gateway Public IP> tunnel 100 allow-nat-networks disable
set vpn ipsec site-to-site peer <Azure Gateway Public IP> tunnel 100 allow-public-networks disable
set vpn ipsec site-to-site peer <Azure Gateway Public IP> tunnel 100 esp-group esp-azure
set vpn ipsec site-to-site peer <Azure Gateway Public IP> tunnel 100 local prefix 10.10.0.0/16
set vpn ipsec site-to-site peer <Azure Gateway Public IP> tunnel 100 protocol all
set vpn ipsec site-to-site peer <Azure Gateway Public IP> tunnel 100 remote prefix 10.11.0.0/16

Once the VPN is connected, you should have a Succeeded status as below:

Create the Windows Server 2016 image

To create the Windows Server 2016 image, first I deploy a new Azure VM. I call it zTemplate.

Then I choose a VM size.

I choose to use managed disks and I connect the VM in the Internal subnet. I don’t need Network Security Group for this VM. I enable the boot diagnostics and I choose the previously created storage account to store logs.

Once the Azure VM is started, I customize the operating system and I apply updates. Then I run sysprep as below:

Once the VM is stopped, I click on Capture:

Then I specify an image name and the resource group. I choose also to automatically delete the VM after creating the image.

At the end of this topic, I have the following resources in the resource group:

Next topic

In the next topic, we will deploy all Azure VMs for the Remote Desktop farm. The VM will be deployed from the Windows Image and from a JSON template.

The post RDS 2016 Farm: Create Microsoft Azure networks, storage and Windows image appeared first on Tech-Coffee.

• Standard Azure Portal: https://manage.windowsazure.com
• Preview Portal: https://portal.azure.com

The Standard Azure Portal is based on the REST API called Service Management while the Preview Portal is based on Azure Resource Manager (ARM). Microsoft introduces ARM to simplify the deployment in their Public Cloud thanks to reusable template written in JSON. We will see in the next section that this template is declarative and describes the resource and its properties that you want to deploy. So it is easy to deploy your development, validation and production environments with the same template. It enables to avoid mistakes and configuration drift. To finish, these templates will be reusable in the AzureStack solution. With ARM and template, you enter in the DevOps worldJ.

This topic is not intended to teach you everything about the Azure Resource Manager template. I write this topic to make a quick overview. To go in deep, I recommend you to check links referenced in the documentation section.

Documentation

Before getting to the heart of the matter, I want to share with you some resources that may interest you:

• Authoring Azure Resource Manager Templates by Tom FitzMacken
• Cloud Consistency with Azure Resource Manager by Kristian Nese
• Azure Resource Manager DevOps Jump Start by David Tesar and Kevin Lam

Recommended stuff

Nothing is mandatory to create and edit your JSON template. But some software can ease your life. However to deploy resources in Azure, you need an Azure subscription. Below you can find the recommended software:

• Azure PowerShell module: it enables to control Azure Resource by using PowerShell. You can download it here;
• Visual Studio 2015: I use Visual Studio 2015 Community. It is an Integrated Development Environment (IDE). You can download it here;
• Azure SDK for .NET: It is the development kit for Microsoft Azure. Be sure to download Azure SDK for Visual Studio 2015. You can download it here.

Azure Resource Manager template

Structure

The template structure looks like this:

{
 "$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
 "contentVersion": "",
 "parameters": { },
 "variables": { },
 "resources": [ ],
 "outputs": { }
 }

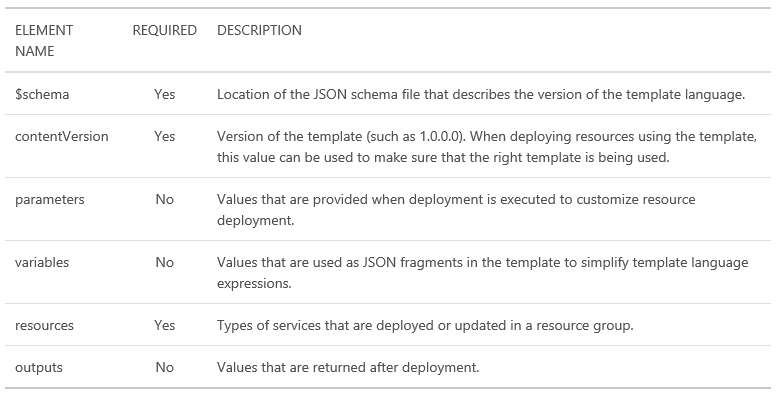

In the below table, you can find the description of each part of the JSON structure. This table comes from Authoring Azure Resource Manager Templates topic.

Parameters part

In the parameters part, you define which settings will be asked to users when the deployment will be executed. Below you can find an example of a simple parameter:

"StoAccountName": {
        "type": "string",
 }

This parameter is called StoAccountName and its type is a string. When the deployment will be executed, the user will be asked to set the StoAccountName parameter. You can add a default value for this parameter as below. However, if you specify another value during deployment, the specified value will replace the defaultValue.

"StoAccountName": {
       "type": "string",
       "defaultValue": "techcoffeevmsto",
}

To finish you can specify a list of allowed values by using allowedValues. You may have noticed that in the below example, the allowed values are between brackets because it is a table.

"StorageAccountType": {
        "type": "string",
        "allowedValues": [
            "Standard_LRS",
            "Standard_GRS",
            "Standard_ZRS"
        ]
}

The allowed parameter types are:

• String
• SecureString (usually for password)
• int (Integer)
• bool (Boolean)
• object
• array

You can create a file that contains values of each parameter to avoid to specify them each time you execute a deployment. Below this is an example of a parameter file:

"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentParameters.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "StorageAccountType": {
            "value": "Standard_LRS"
        },
        "VirtualNetworkName": {
            "value": "TechCoffeevNet"
        },
        "StoAccountName": {
            "value": "techcoffeevmstorage"
        }
    }
}

To call a parameter in the JSON template, you can use parameters(‘<ParameterName>’).

Variables part

Variables are used to simplify the readability of the template and to reuse several times a same value but specified one time. You can use parameters to construct variables. Below some examples:

"VMWEBImageOffer": "WindowsServer",
"VMWEBOSDiskName": "[concat(parameters('VMWEBName'), '_OSDisk')]",
"ResourcesLocation": "[ResourceGroup().location]"

VMWEBImageOffer is a variable that containing WindowsServer string.

VMWebOSDiskName variable contains a concatenation of the value of the VMWEBName parameters and the string _OSDisk. For example, if VMWebName parameter is VMWEB01, the VMWEBOSDiskName variable contains VMWEB01_OSDisk.

To finish ResourcesLocation contains the location of the resource group where the resources will be deployed.

You can call a variable in the JSON template by using variables(‘<VariableName>’).

Resources part

In this part you define the resource that will be deployed in Microsoft Azure (Virtual Machines, vNICs, Storage Accounts and so on). If the object already exists, it will be updated with the settings specified in the template.

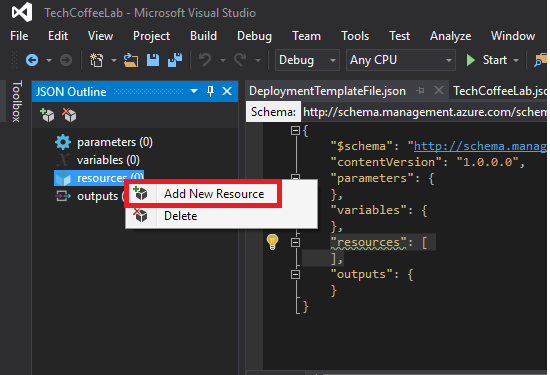

I really recommend you to use Visual Studio with Azure SDK because you can add a resource to the template with some clicks. When you have created an Azure Resource Group Project (Templates, Visual C# and Cloud), right click on resources in the JSON Outline and click on Add New Resource.

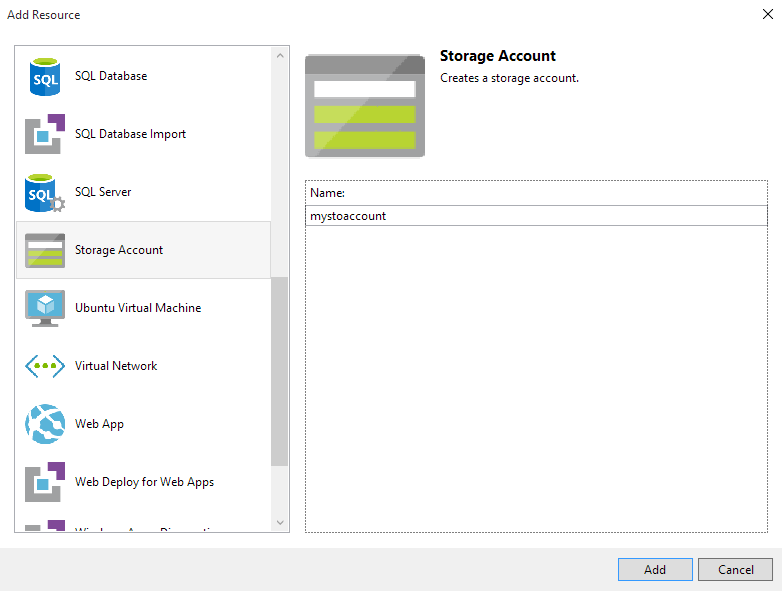

Select the resource that you want to add and click on Add. For example, below I add a Storage Account:

When you have clicked on add, you should have additional parameters, variables and resources as below:

{
    "name": "[parameters('mystoaccountName')]",
    "type": "Microsoft.Storage/storageAccounts",
    "location": "[parameters('mystoaccountLocation')]",
    "apiVersion": "2015-05-01-preview",
    "dependsOn": [ ],
    "tags": {
           "displayName": "mystoaccount"
     },
     "properties": {
           "accountType": "[parameters('mystoaccountType')]"
     }
}

Now you just have to change the properties of the resource group with your variables and parameters and the resource configuration is finished!

Make a loop

I know that I said earlier that I will not go deep in this topic, but I think loops are important to simplify your template. Loops enable you to declare one time a resource and make several deployments of this resource. For example, you can declare once a time a Virtual Machine and make a loop to create several instances with the same settings.

To make a loop, first you should create an integer parameter as below:

"WebInstanceCount": {
        "defaultValue": "2",
        "type": "int"
}

Now I’ll take an example of creating several vNICs by using a loop.

{
       "name": "[concat('vNIC_', parameters('VMWEBName'), copyindex(1))]",
       "type": "Microsoft.Network/networkInterfaces",
       "location": "[variables('ResourcesLocation')]",
       "apiVersion": "2015-05-01-preview",
        "copy": {
            "name": "VMWEBNicLoop",
            "count": "[parameters('WebInstanceCount')]"

        }
}

First, you can see copy element that enables to specify a loop name and a counter. So in count element, I specify my parameter WebInstanceCount that has a default value of 2. So two vNIC will be created by using this loop.

Now I want to get the counter index to name my vNIC (to name them vNIC1, vNIC2 and so on). So I use copyindex() function. You can find it in the above example in the name element. The number 1 specified in the copyindex() function enables me to shift the index by 1. I do that because the index start from 0 but I don’t want a vNIC called vNIC0. So I have shifted the index by 1 to start from vNIC1.

Deploy the template

You can deploy the template directly from Visual Studio, by using PowerShell or from the Azure Marketplace (template deployment).

Deploy from Visual Studio

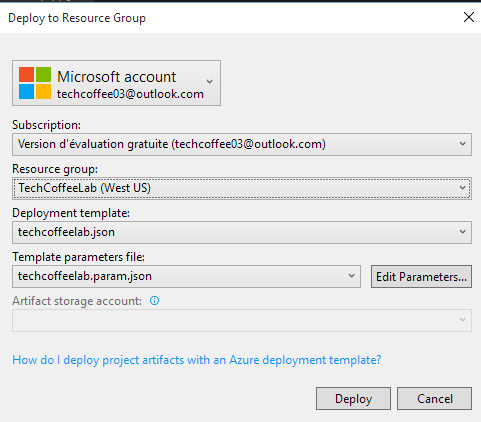

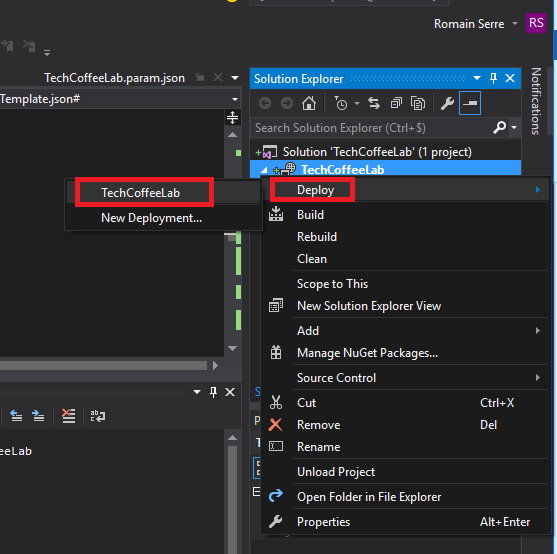

To deploy your resource from Visual Studio, right click on your project and select Deploy.

Next, select your account, your subscription and so on. You can fill automatically your parameter files by clicking on Edit Parameters.

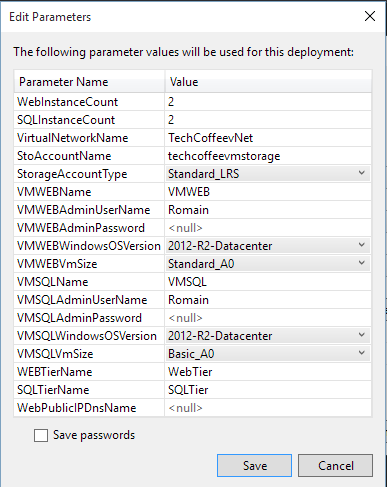

In Edit Parameters, you can specify the parameter values. When you have specified the AllowedValues element in parameters, you have a drop-down menu instead of a field.

Deploy from Azure Portal

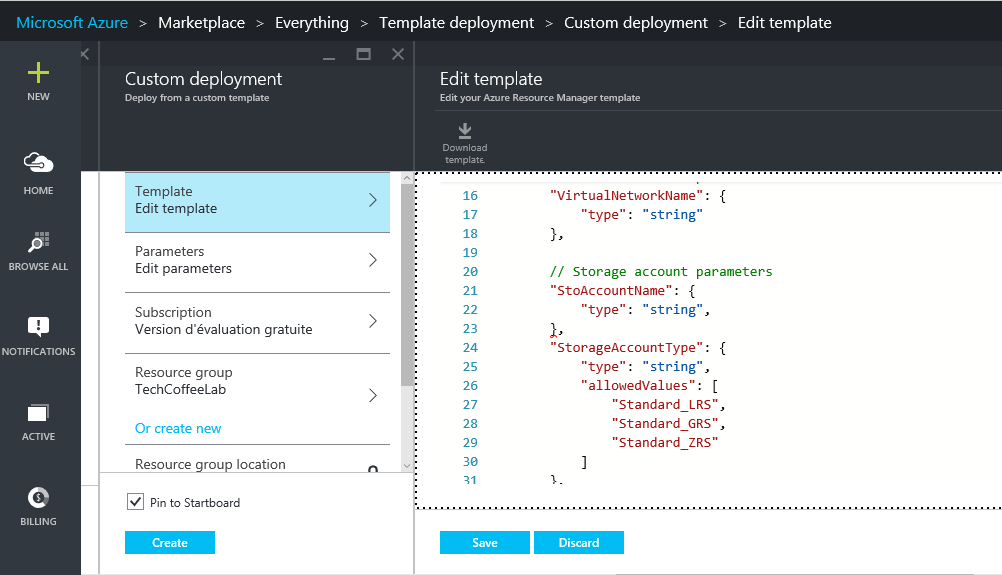

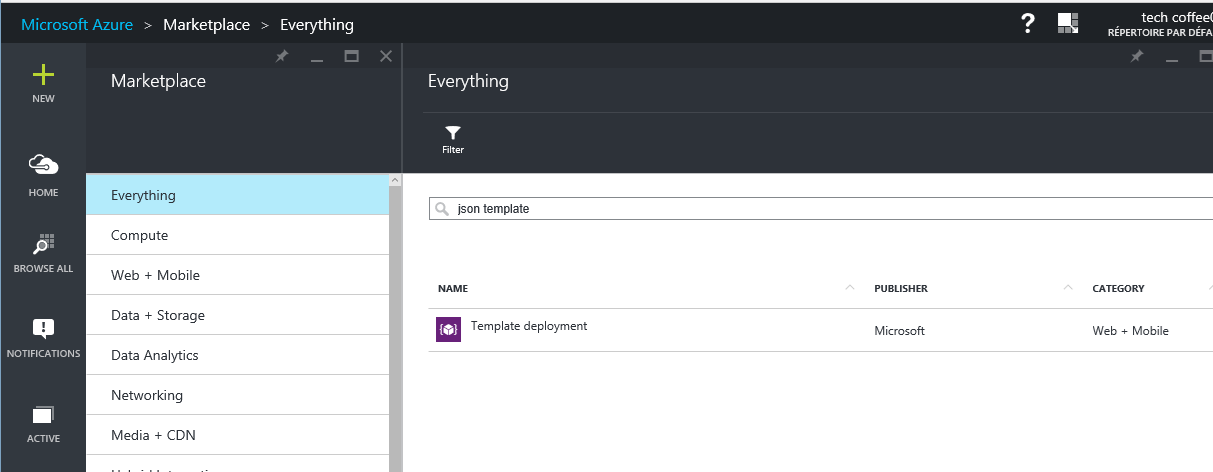

You can also deploy the JSON directly from the Azure Portal. Navigate to the marketplace and find template deployment.

Now you just have to past your JSON template and set the parameters, the resource group and so on:

Deploy from PowerShell

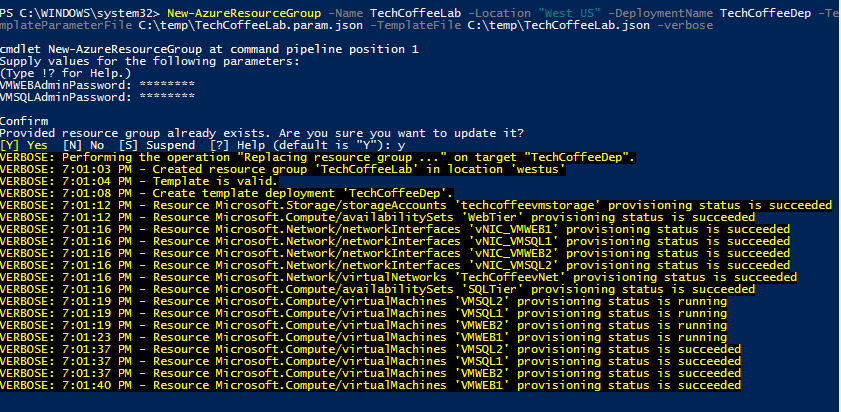

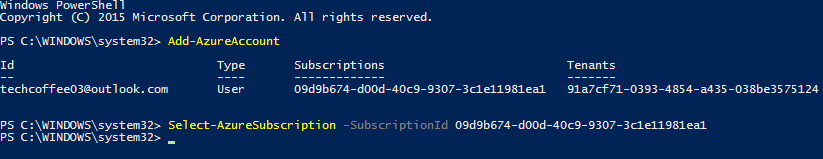

Here is my favorite method. You can deploy the template from PowerShell by using the New-AzureResourceGroup cmdlet. First connect to your subscription.

Next run the following command:

New-AzureResourceGroup -Name TechCoffeeLab `
                       -Location "West US" `
                       -DeploymentName TechCoffeeDep `
                       -TemplateParameterFile C:\temp\TechCoffeeLab.param.json `
                       -TemplateFile C:\temp\TechCoffeeLab.json `
                       -verbose

You can find my JSON files on my GitHub repository: https://github.com/SerreRom/TechCoffee

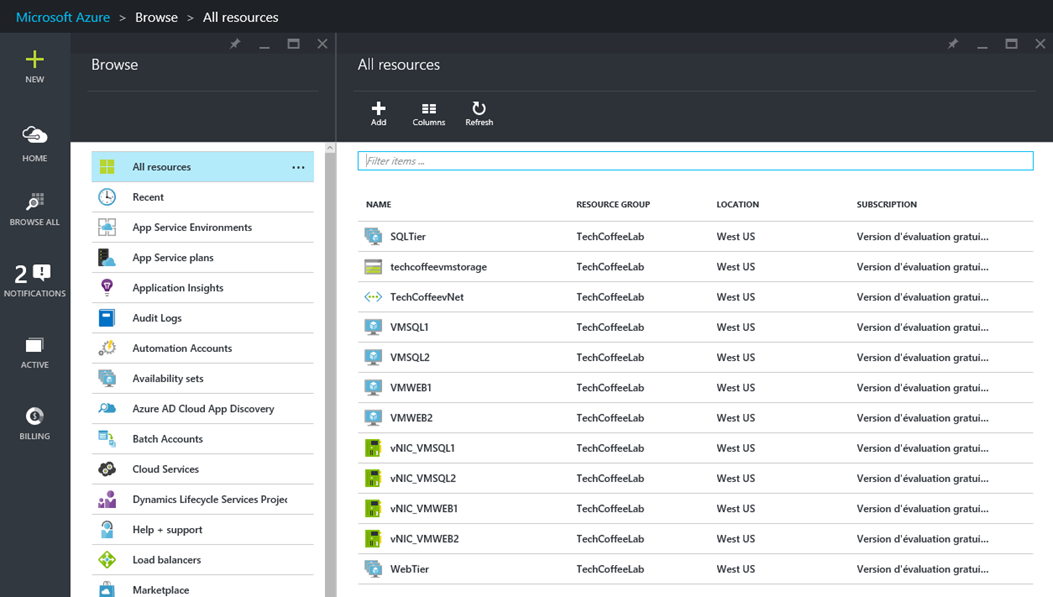

Now that the deployment is finished you can open your Azure Portal to see your resources deployed:

Conclusion

This topic presents you a quick overview of the Azure Resource Manager Template. To go in deep, I recommend you to check links referenced in the documentation section. As you have seen in this topic, template enables to make consistent deployments, even if you have several environments as testing, validation and production. Moreover, you can update quickly some settings just by changing the values in the template. To finish you can leverage on Azure VM Extensions to configure your Virtual Machines as you want (run scripts, Desired State configuration and so on) during the deployment. And JSON template will be compatible with Azure Stack J.

The post Deploy Azure Resources with JSON template appeared first on Tech-Coffee.
